Built for serious RC construction. The JDM DXR2 RC Bulldozer is a fully hydraulic, full-metal dozer with CNC-machined kirsite/aluminium components, a 9-channel 2.4 GHz radio, and an integrated engine sound module. Fast servo response, a multi-axis tilting blade, and a functional rear ripper let it work like the real machine. Each unit is assembled, tuned, and test-run by RC technicians before dispatch.
Expert model: This is an advanced hydraulic dozer intended for experienced users. Newcomers should consider simpler electric models first.
Highlights
- Hydraulic / Full Metal / RTR / Battery-powered / Sound module equipped
- CNC-machined kirsite & aluminium chassis and running gear
- Optimised chrome-steel hydraulic system with reliable valves & adjustable pump
- 9-channel 2.4 GHz radio (AT9) for precise multi-function control
- Fully functional blade (tilt ±10°; max lift ~173 mm; max cut/shovel depth ~48 mm)
- Working ripper for compacted soils
- Heavy-duty hydraulic hoses (ID 2.0–2.5 mm nylon; OD 3.0–4.0 mm)
- Massive brushless hydraulic powertrain (hydraulic ESC 60 A; drive ESC 320 A brushed; 800 Kv brushless motor)
- Efficient undercarriage with robust steering; powder-coated in yellow
- Scale operator station (seat installed; fits a driver figure)
Technical Specifications
- Scale: 1:14
- Length / Width / Height: 685 × 351 × 323 mm
- Blade (Shovel) size: W 351 mm × H 86 mm
- Net weight: ~26 kg
- Hydraulics: Operating pressure ~25 bar; flow ~0.8 L/min
- Oil pump: Steel-machined (approx. 51 × 40 × 36 mm)
- Blade capability: Max lift ~173 mm; max cut ~48 mm; tilt ±10°
- Drive speed: 1st gear ~6 m/min
- Electronics: Hydraulic ESC 60 A (brushless), Drive ESC 320 A (brushed), Motor 800 Kv brushless
- Radio system: AT9 2.4 GHz, 9 channels
- Power (recommended): 3S LiPo 11.1 V 5300 mAh (not included)
- Finish: Powder-coated yellow

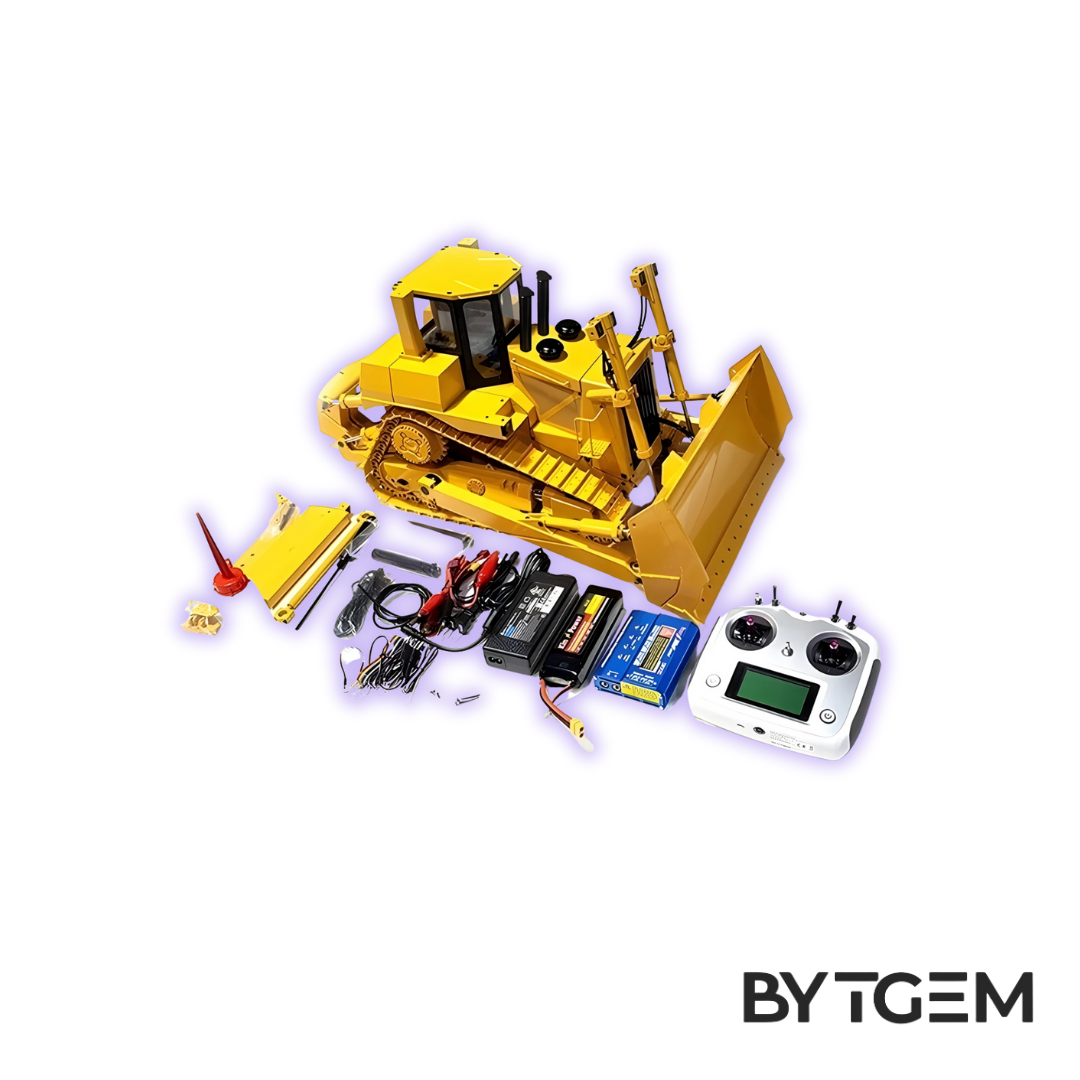

What’s Included
- JDM DXR2 RC Bulldozer (fully assembled)
- 9-channel 2.4 GHz AT9 radio transmitter
- Engine sound module pre-installed
- Pre-installed electronics & hydraulics (ESCs, pump, hoses, valves)
Exact pack-ins may vary slightly by batch; core RTR configuration is maintained.
Required (Not Included)
- Hydraulic oil (fill tank before first run; do not adjust pressure unless you’re qualified)
- 3S LiPo 11.1 V 5300 mAh and compatible charger
- AA batteries for the transmitter (if required by your AT9 variant)
Build & Fulfilment
- Made-to-order manufacturing: Typically ~1–4 weeks depending on workload/material supply.
- Occasional ready stock: Limited units may be available for immediate dispatch.
- QC & testing: Each machine is test-run by RC experts prior to hand-off to the courier.
- Shipping: Express courier with tracking; typical transit ~5–12 days (destination-dependent).
- Support: For order issues, contact [email protected].
Operating Notes & Care
- Fill the hydraulic oil reservoir before use; bleed air as per best practice.
- Do not exceed recommended hydraulic pressure; misadjustment can cause damage.
- Warm up hydraulics at low load; avoid shock loads on blade/ripper.
- Inspect hoses/fittings regularly; keep tracks and running gear clean of debris.
- Store cool and dry; disconnect LiPo for storage and follow LiPo safety guidelines
